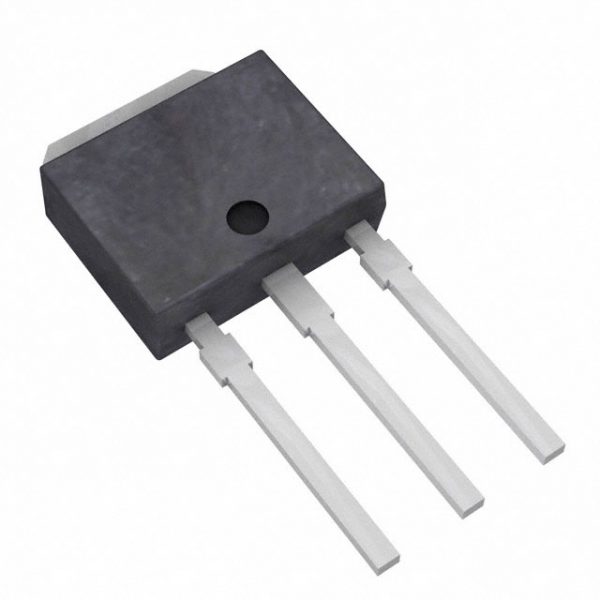

IRFU020
| Part Number | IRFU020 |
|---|---|
| Description | MOSFET N-CH 60V 14A I-PAK |
| Category | Discrete Semiconductor Products |
| Manufacturer | Electro-Films (EFI) / Vishay |
| In Stock | 18797 |
| Datasheet | Download |
Description
| Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-251AA |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 8.4A, 10V |
| Power Dissipation (Max) | 2.5W (Ta), 42W (Tc) |
| Packaging | Tube |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Other Names | *IRFU020 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 640pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V |
| FET Type | N-Channel |
| Drive Voltage (Max/Min Rds) | 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | N-Channel 60V 14A (Tc) 2.5W (Ta), 42W (Tc) Through Hole TO-251AA |
| Current – Drain (Id) @ 25°C | 14A (Tc) |
