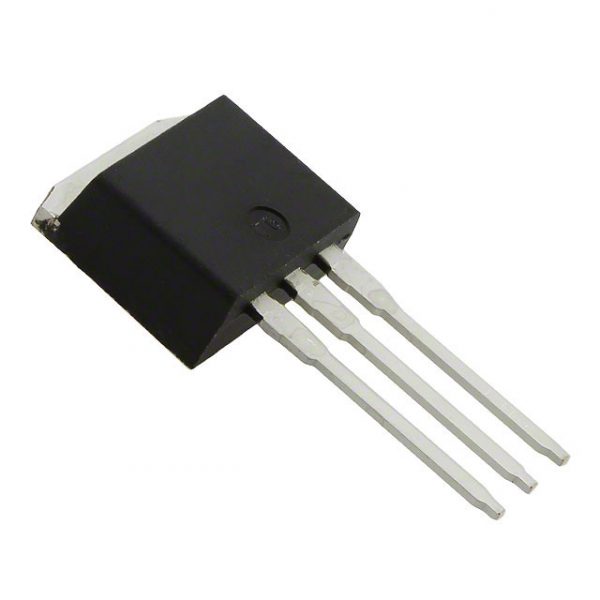

IRF840LCL
| Part Number | IRF840LCL |
|---|---|
| Description | MOSFET N-CH 500V 8A TO-262 |
| Category | Discrete Semiconductor Products |
| Manufacturer | Electro-Films (EFI) / Vishay |
| In Stock | 14451 |
| Datasheet | Download |
Description
| Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | I2PAK |
| Rds On (Max) @ Id, Vgs | 850 mOhm @ 4.8A, 10V |
| Power Dissipation (Max) | 3.1W (Ta), 125W (Tc) |
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Other Names | *IRF840LCL |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 1100pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 39nC @ 10V |
| FET Type | N-Channel |
| Drive Voltage (Max/Min Rds) | 10V |
| Drain to Source Voltage (Vdss) | 500V |
| Detailed Description | N-Channel 500V 8A (Tc) 3.1W (Ta), 125W (Tc) Through Hole I2PAK |
| Current – Drain (Id) @ 25°C | 8A (Tc) |
