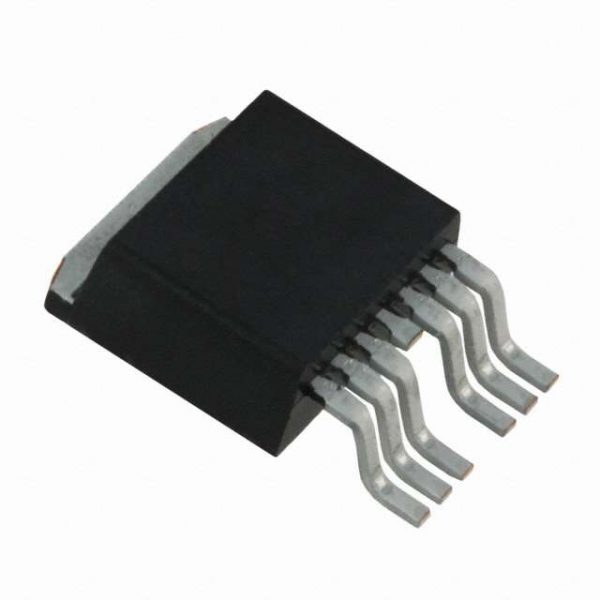

IPB065N15N3GE8187ATMA1
| Part Number | IPB065N15N3GE8187ATMA1 |
|---|---|
| Description | MOSFET N-CH 150V 130A TO263-7 |
| Category | Discrete Semiconductor Products |
| Manufacturer | International Rectifier (Infineon Technologies) |
| In Stock | 5155 |
| Datasheet | Download |
Description
| Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 4V @ 270µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TO263-7 |
| Series | OptiMOS™ |
| Rds On (Max) @ Id, Vgs | 6.5 mOhm @ 100A, 10V |
| Power Dissipation (Max) | 300W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB |
| Other Names | IPB065N15N3 G E8187 IPB065N15N3 G E8187-ND IPB065N15N3 G E8187TR-ND IPB065N15N3GE8187ATMA1TR SP000939336 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 7300pF @ 75V |
| Gate Charge (Qg) (Max) @ Vgs | 93nC @ 10V |
| FET Type | N-Channel |
| Drive Voltage (Max/Min Rds) | 8V, 10V |
| Drain to Source Voltage (Vdss) | 150V |
| Detailed Description | N-Channel 150V 130A (Tc) 300W (Tc) Surface Mount PG-TO263-7 |
| Current – Drain (Id) @ 25°C | 130A (Tc) |
