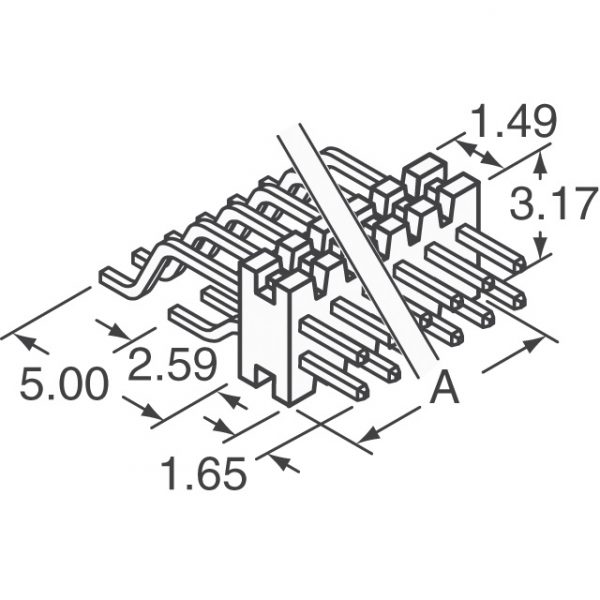

FTMH-119-03-L-DH
| Part Number | FTMH-119-03-L-DH |
|---|---|
| Description | CONN HEADER 38POS DL 1MM R/A SMD |
| Category | Connectors |
| Manufacturer | Samtec, Inc. |
| In Stock | 5007 |
| Datasheet | Download |
Description
| Manufacturer | Samtec, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Series | FTMH |
| Row Spacing – Mating | 0.039″ (1.00mm) |
| Pitch – Mating | 0.039″ (1.00mm) |
| Packaging | Bulk |
| Other Names | SAM1130-19 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 38 |
| Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.125″ (3.18mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 38 position 0.039″ (1.00mm) |
| Current Rating | 2.8A per Contact |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Length – Mating | 0.065″ (1.65mm) |
| Finish Thickness – Mating | 10.0µin (0.25µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Header |
