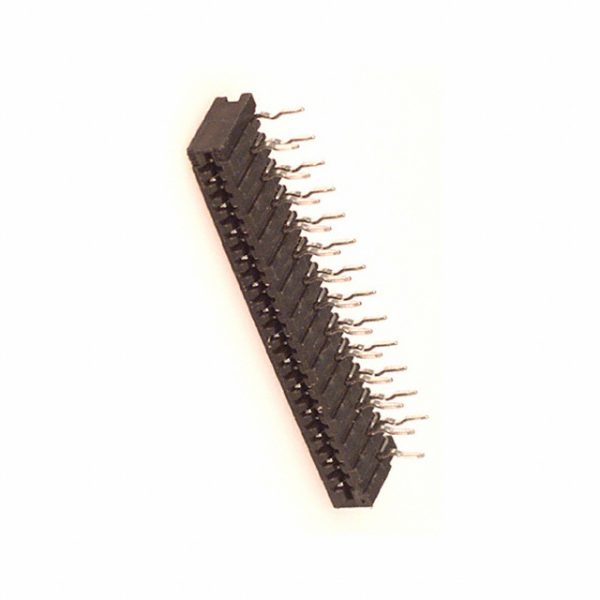

FH21-26S-1DS
| Part Number | FH21-26S-1DS |
|---|---|
| Description | CONN FFC FPC 26POS 1.00MM R/A |
| Category | Connectors |
| Manufacturer | Hirose |
| In Stock | 17816 |
| Datasheet | Download |
Description
| Manufacturer | Hirose |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage Rating | 50V |
| Termination | Kinked Pin |
| Series | FH21 |
| Pitch | 0.039″ (1.00mm) |
| Packaging | Bulk |
| Other Names | *FH21-26S-1DS HFG26T |
| Operating Temperature | -30°C ~ 70°C |
| Number of Positions | 26 |
| Mounting Type | Through Hole, Right Angle |
| Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Housing Color | Black |
| Height Above Board | 0.106″ (2.70mm) |
| Flat Flex Type | FFC, FPC |
| Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.30mm |
| Detailed Description | 26 Position FFC, FPC Connector Contacts, Top and Bottom 0.039″ (1.00mm) Through Hole, Right Angle |
| Current Rating | 0.5A |
| Contact Material | Phosphor Bronze |
| Contact Finish | Solder Plating |
| Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Straight |
