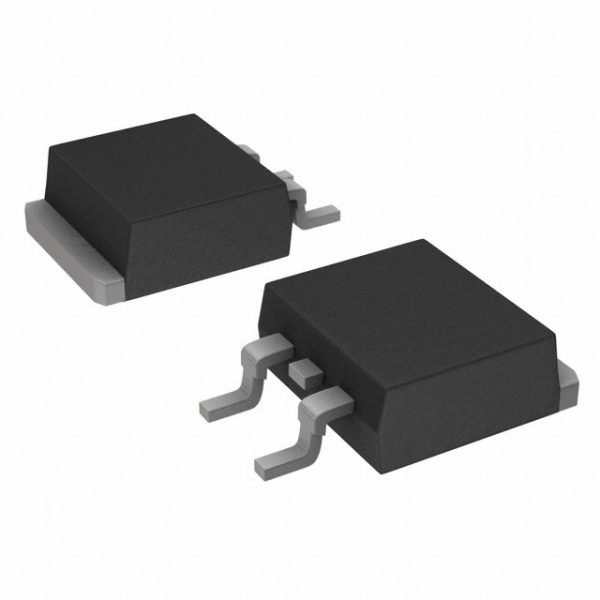

FDB14AN06LA0
| Part Number | FDB14AN06LA0 |
|---|---|
| Description | MOSFET N-CH 60V 67A TO-263AB |
| Category | Discrete Semiconductor Products |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 19088 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-263AB |
| Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 11.6 mOhm @ 67A, 10V |
| Power Dissipation (Max) | 125W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 2900pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 31nC @ 5V |
| FET Type | N-Channel |
| Drive Voltage (Max/Min Rds) | 5V, 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | N-Channel 60V 10A (Ta), 67A (Tc) 125W (Tc) Surface Mount TO-263AB |
| Current – Drain (Id) @ 25°C | 10A (Ta), 67A (Tc) |
