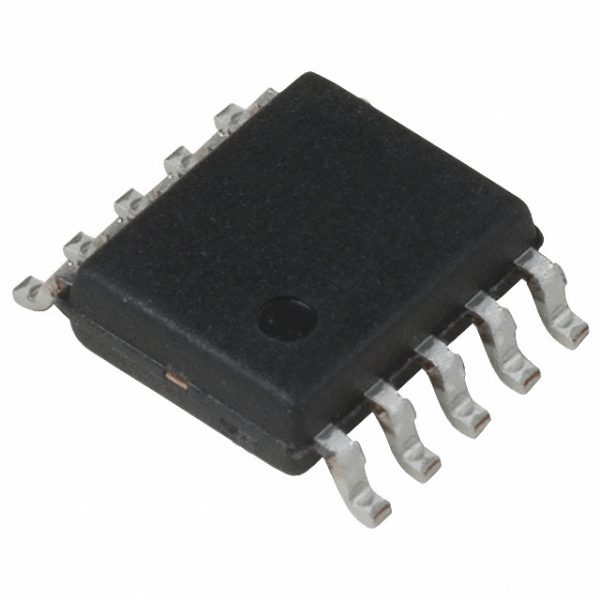

FAN7601G
| Part Number | FAN7601G |
|---|---|
| Description | IC CTRLR PWM GREEN MODE 10SSOP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 11823 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | 8 V ~ 20 V |
| Voltage – Start Up | 12V |
| Topology | Flyback |
| Supplier Device Package | 10-SSOP |
| Packaging | Tube |
| Package / Case | 10-SOP (0.154″, 3.90mm Width) |
| Other Names | FAN7601G_NL FAN7601G_NL-ND |
| Operating Temperature | -25°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Internal Switch(s) | Yes |
| Frequency – Switching | Up to 300kHz |
| Fault Protection | Over Temperature, Over Voltage |
| Duty Cycle | 95% |
| Detailed Description | Converter Offline Flyback Topology Up to 300kHz 10-SSOP |
| Control Features | Frequency Control, Soft Start |
| Base Part Number | FAN7601 |
