EEV-HD1E101P
| Part Number | EEV-HD1E101P |
|---|---|
| Description | CAP ALUM 100UF 20% 25V SMD |
| Category | Capacitors |
| Manufacturer | Panasonic |
| In Stock | 18602 |
| Datasheet | Download |
Description
| Manufacturer | Panasonic |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Rated | 25V |
| Tolerance | ±20% |

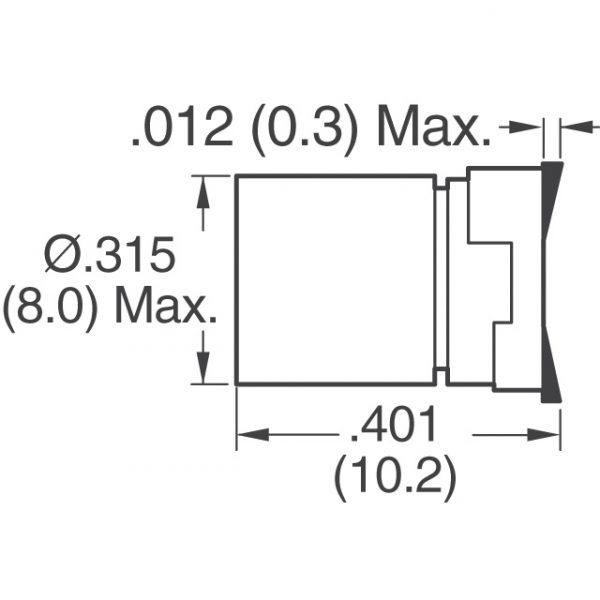

| Surface Mount Land Size | 0.327″ L x 0.327″ W (8.30mm x 8.30mm) |
| Size / Dimension | 0.315″ Dia (8.00mm) |
| Series | HD-V |
| Ripple Current @ Low Frequency | 84mA @ 120Hz |
| Ripple Current @ High Frequency | 142.8mA @ 10kHz |
| Polarization | Polar |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can – SMD |
| Other Names | EEVHD1E101P PCE3370TR |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Impedance | 1.5 Ohms |
| Height – Seated (Max) | 0.402″ (10.20mm) |
| Detailed Description | 100µF 25V Aluminum Electrolytic Capacitors Radial, Can – SMD 5000 Hrs @ 105°C |
| Capacitance | 100µF |
| Applications | General Purpose |
