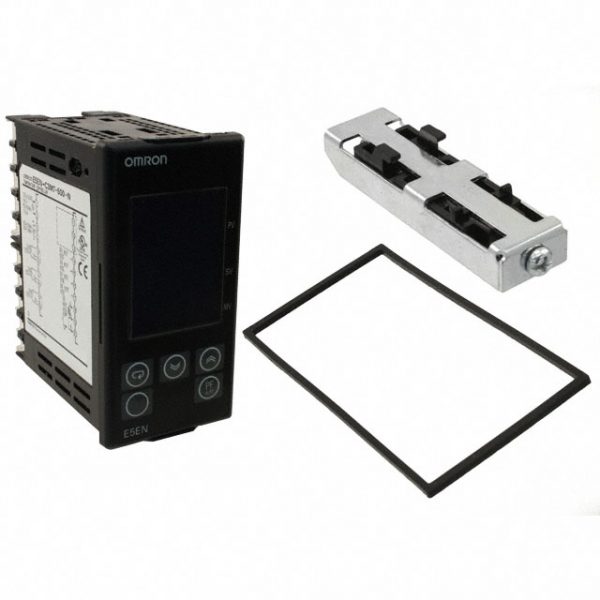

E5EN-C3MT-500-N AC100-240

Description

Manufacturer	Omron Automation & Safety
Lead / RoHS Status	Lead free / RoHS Compliant
Weight	0.573 lb (259.91g)
Voltage – Supply	100 ~ 240VAC
Type	Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W)
Termination Style	Screw Terminal
Series	E5EN
Panel Cutout Dimensions	Rectangular – 92.00mm x 45.00mm
Output Type	Analog, Relay (3)
Other Names	E5ENC3MT500NAC100240 Z3149
Operating Temperature	-10°C ~ 55°C
Number Of Characters Per Row	4, 4, 4
Mounting Type	Panel Mount
Moisture Sensitivity Level	1 (Unlimited)
Input Range	-200°C ~ 2300°C, 0 ~ 50mV
Ingress Protection	IP66 – Dust Tight, Water Resistant
Features	Option Cards Available
Display Type	LCD – Tri Color Characters, Backlight
Display Characters – Height	0.465″ (11.80mm), 0.319″ (8.10mm), 0.228″ (5.80mm)
Detailed Description	Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) 100 ~ 240VAC Panel Mount
Control Method	On/Off, Proportional (PID)
Communications	Option Cards Available
