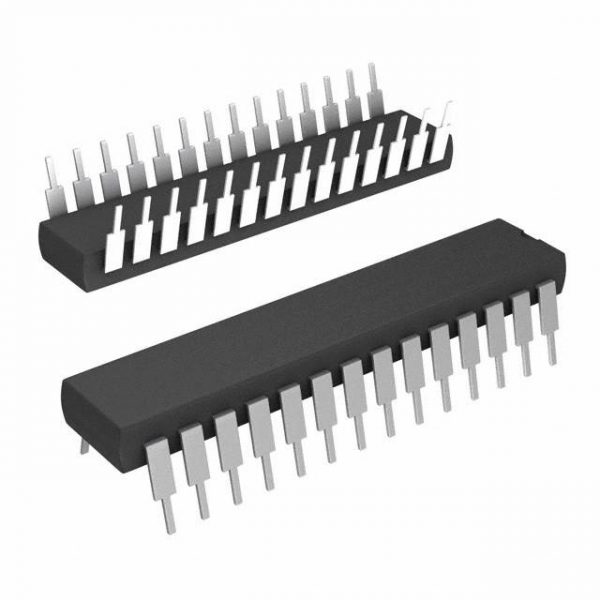

DAC712PLG4
| Part Number | DAC712PLG4 |
|---|---|
| Description | IC DAC 16BIT PAR 28-DIP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Luminary Micro / Texas Instruments |
| In Stock | 7391 |
| Datasheet | Download |
Description
| Manufacturer | Luminary Micro / Texas Instruments |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply, Analog | ±11.4 V ~ 16.5 V |
| Supplier Device Package | 28-PDIP |
| Settling Time | 10µs |
| Reference Type | Internal |
| Packaging | Tube |
| Package / Case | 28-DIP (0.300″, 7.62mm) |
| Output Type | Voltage – Buffered |
| Operating Temperature | 0°C ~ 70°C |
| Number of D/A Converters | 1 |
| Number of Bits | 16 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | No |
| Detailed Description | 16 Bit Digital to Analog Converter 1 28-PDIP |
| Data Interface | Parallel |
| Base Part Number | DAC712 |
| Architecture | R-2R |
