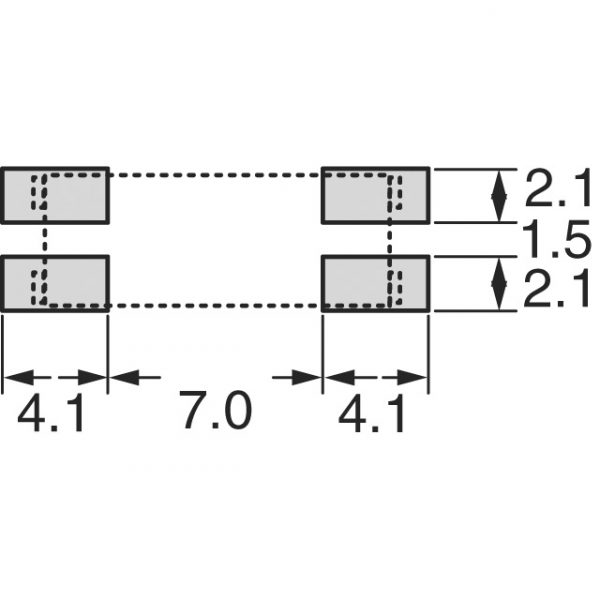

CM309B8.000156MABJT
| Part Number | CM309B8.000156MABJT |
|---|---|
| Description | CRYSTAL 8.000156MHZ 18PF SMD |
| Category | Crystals |
| Manufacturer | Citizen Finedevice Co., LTD. |
| In Stock | 9386 |
| Datasheet | Download |
Description
| Manufacturer | Citizen Finedevice Co., LTD. |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Type | MHz Crystal |
| Size / Dimension | 0.528″ L x 0.200″ W (13.40mm x 5.08mm) |
| Series | CM309B |
| Packaging | Cut Tape (CT) |
| Package / Case | 4-SOJ, 2.85mm pitch |
| Other Names | 300-4114-1 CM309B8000156MABJT |
| Operating Temperature | -10°C ~ 60°C |
| Operating Mode | Fundamental |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Load Capacitance | 18pF |
| Height – Seated (Max) | 0.181″ (4.60mm) |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±50ppm |
| Frequency | 8.000156MHz |
| Equivalent Series Resistance | 100 Ohms |
| Detailed Description | 8.000156MHz ±30ppm Crystal 18pF 100 Ohms 4-SOJ, 2.85mm pitch |
