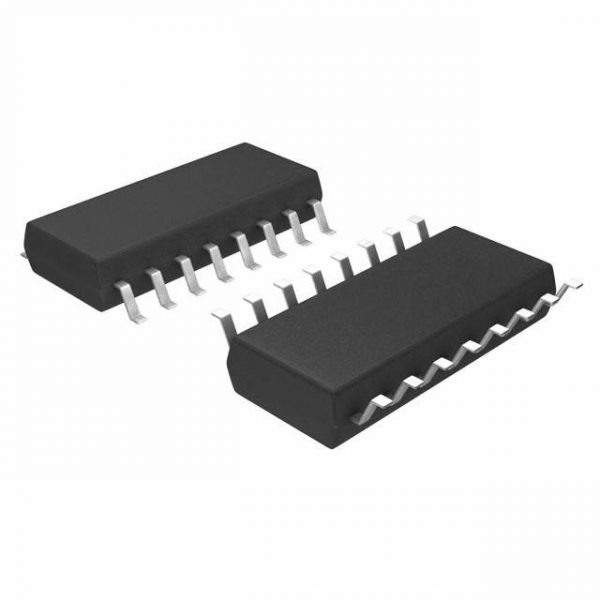

CD74AC175NSR
| Part Number | CD74AC175NSR |
|---|---|
| Description | IC FF D-TYPE SNGL 4BIT 16SO |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Luminary Micro / Texas Instruments |
| In Stock | 17358 |
| Datasheet | Download |
Description
| Manufacturer | Luminary Micro / Texas Instruments |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 1.5 V ~ 5.5 V |
| Type | D-Type |
| Trigger Type | Positive Edge |
| Series | 74AC |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.209″, 5.30mm Width) |
| Output Type | Differential |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Number of Elements | 1 |
| Number of Bits per Element | 4 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Max Propagation Delay @ V CL | 12.2ns @ 5V, 50pF |
| Input Capacitance | 10pF |
| Function | Master Reset |
| Current – Quiescent (Iq) | 8µA |
| Current – Output High, Low | 24mA, 24mA |
| Clock Frequency | 100MHz |
| Base Part Number | 74AC175 |
