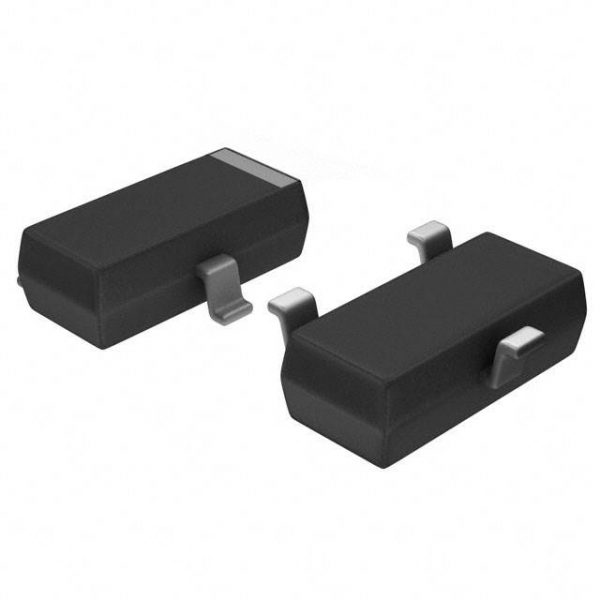

BCR 135 B6327
| Part Number | BCR 135 B6327 |
|---|---|
| Description | TRANS PREBIAS NPN 200MW SOT23-3 |
| Category | Discrete Semiconductor Products |
| Manufacturer | International Rectifier (Infineon Technologies) |
| In Stock | 5804 |
| Datasheet | Download |
Description
| Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Collector Emitter | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Transistor Type | NPN – Pre-Biased |
| Supplier Device Package | SOT-23-3 |
| Resistor – Emitter Base (R2) | 47 kOhms |
| Resistor – Base (R1) | 10 kOhms |
| Power – Max | 200mW |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Other Names | BCR 135 B6327-ND BCR135B6327 BCR135B6327XT SP000095915 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Frequency – Transition | 150MHz |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) NPN – Pre-Biased 50V 100mA 150MHz 200mW Surface Mount SOT-23-3 |
| DC Current Gain (hFE) (Min) | 70 @ 5mA, 5V |
| Current – Collector Cutoff | 100nA (ICBO) |
| Current – Collector (Ic) (Max) | 100mA |
| Base Part Number | BCR135 |
