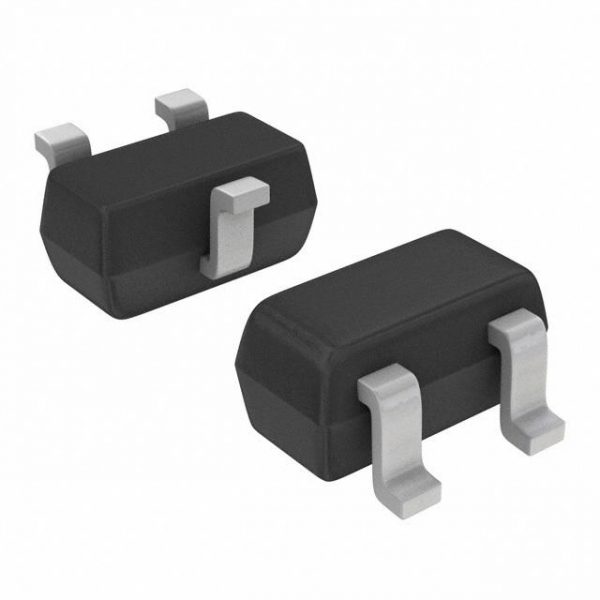

BAT54CTT1
| Part Number | BAT54CTT1 |
|---|---|
| Description | DIODE ARRAY SCHOTTKY 30V SC75 |
| Category | Discrete Semiconductor Products |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 18141 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Forward (Vf) (Max) @ If | 800mV @ 100mA |
| Voltage – DC Reverse (Vr) (Max) | 30V |
| Supplier Device Package | SC-75, SOT-416 |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-75, SOT-416 |
| Operating Temp – Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Detailed Description | Diode Array 1 Pair Common Cathode Schottky 30V 200mA (DC) Surface Mount SC-75, SOT-416 |
| Current – Reverse Leakage @ Vr | 2µA @ 25V |
| Current – Average Rectified | 200mA (DC) |
| Base Part Number | BAT54C |
