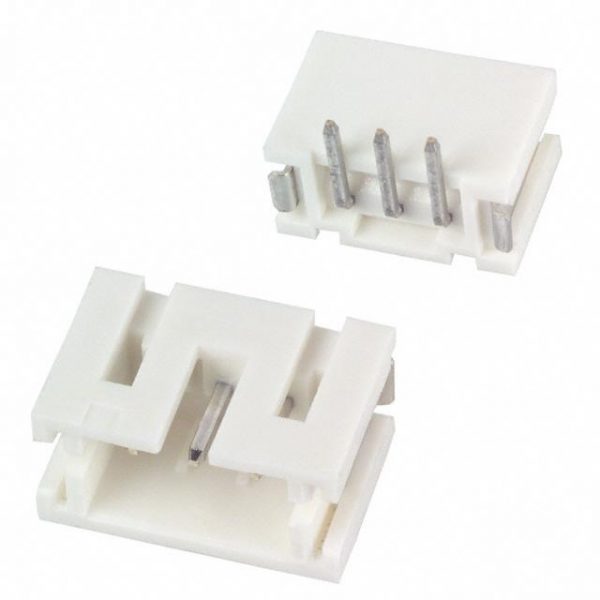

B3B-PH-SM3-TB
| Part Number | B3B-PH-SM3-TB |
|---|---|
| Description | CONN HEADER PH TOP 3POS 2MM SMD |
| Category | Connectors |
| Manufacturer | JST |
| In Stock | 14000 |
| Datasheet | Download |
Description
| Manufacturer | JST |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage Rating | 100V |
| Termination | Solder |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Series | PH |
| Pitch – Mating | 0.079″ (2.00mm) |
| Packaging | Tape & Reel (TR) |
| Other Names | 455-1316-2 |
| Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 3 |
| Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8.6mm |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.260″ (6.60mm) |
| Insulation Color | Natural |
| Features | Solder Retention |
| Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 3 position 0.079″ (2.00mm) |
| Current Rating | 2A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length – Mating | 0.130″ (3.30mm) |
| Contact Finish – Post | Tin-Lead |
| Contact Finish – Mating | Tin-Lead |
| Connector Type | Header |
