B37981F5472K051

Part Number

Description

Manufacturer	EPCOS
Lead / RoHS Status	Lead free / RoHS Compliant
Voltage – Rated	50V
Tolerance	±10%
Temperature Coefficient	X7R

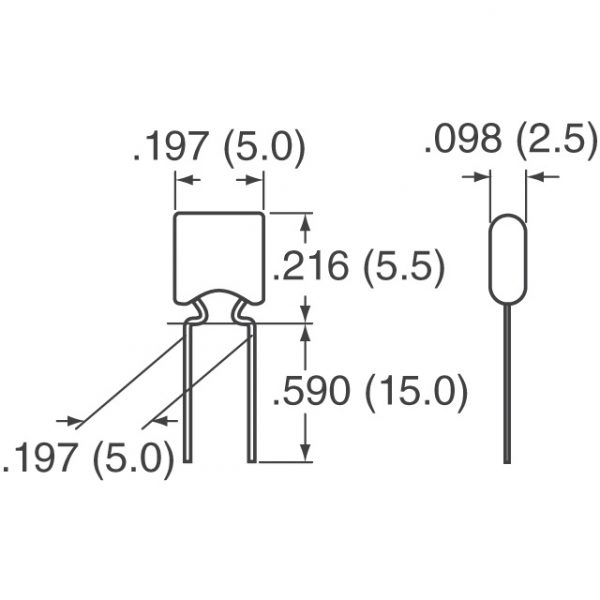

Size / Dimension	0.217″ L x 0.197″ W (5.50mm x 5.00mm)
Series	B37981F
Ratings	AEC-Q200
Packaging	Tape & Reel (TR)
Package / Case	Radial
Other Names	495-3340-2 B37981F5472K 51 B37981F5472K51
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Lead Style	Formed Leads
Lead Spacing	0.197″ (5.00mm)
Height – Seated (Max)	0.098″ (2.50mm)
Detailed Description	4700pF ±10% 50V Ceramic Capacitor X7R Radial
Capacitance	4700pF
Applications	Automotive
