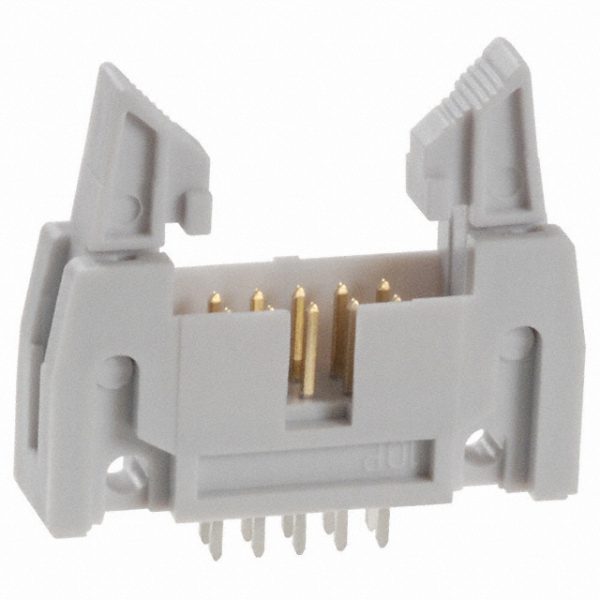

AWH10G-0222-T-R
| Part Number | AWH10G-0222-T-R |
|---|---|
| Description | CONN HEADER 10PS VERT SHORT GOLD |
| Category | Connectors |
| Manufacturer | ASSMANN WSW Components |
| In Stock | 19944 |
| Datasheet | Download |
Description
| Manufacturer | ASSMANN WSW Components |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Tray |
| Other Names | AWH10G0222TR HVS10H |
| Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 10 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.669″ (17.00mm) |
| Insulation Color | Gray |
| Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Detailed Description | Connector Header Through Hole 10 position 0.100″ (2.54mm) |
| Current Rating | 3A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Brass |
| Contact Length – Post | 0.130″ (3.30mm) |
| Finish Thickness – Mating | Flash |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Header |
