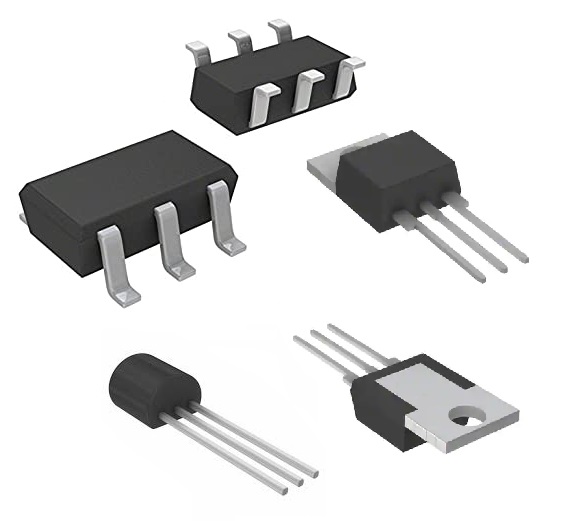

APT130SM70B
| Part Number | APT130SM70B |
|---|---|
| Description | MOSFET N-CH 700V TO247 |
| Category | Discrete Semiconductor Products |
| Manufacturer | Microsemi |
| In Stock | 16708 |
| Datasheet | Download |
Description
| Manufacturer | Microsemi |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 2.4V @ 1mA |
| Vgs (Max) | +25V, -10V |
| Technology | SiCFET (Silicon Carbide) |
| Supplier Device Package | TO-247 |
| Rds On (Max) @ Id, Vgs | 45 mOhm @ 60A, 20V |
| Power Dissipation (Max) | 556W (Tc) |
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 3950pF @ 700V |
| Gate Charge (Qg) (Max) @ Vgs | 220nC @ 20V |
| FET Type | N-Channel |
| Drive Voltage (Max/Min Rds) | 20V |
| Drain to Source Voltage (Vdss) | 700V |
| Detailed Description | N-Channel 700V 110A (Tc) 556W (Tc) Through Hole TO-247 |
| Current – Drain (Id) @ 25°C | 110A (Tc) |
