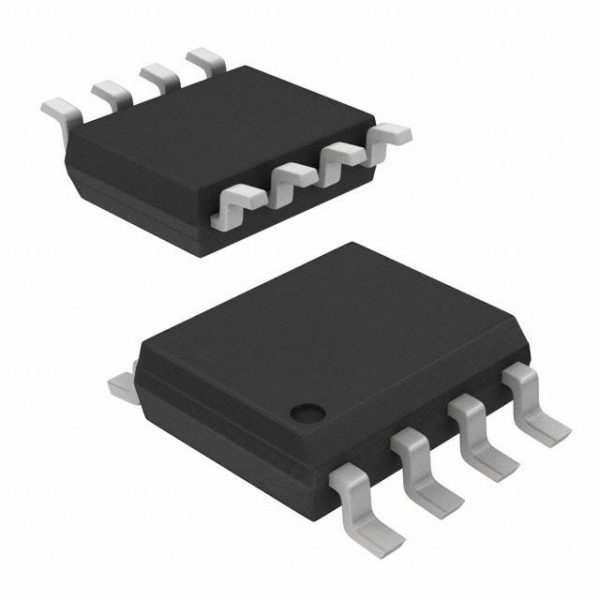

AP1509-50SL-13
| Part Number | AP1509-50SL-13 |
|---|---|
| Description | IC REG BUCK 5V 2A 8SOIC |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Diodes Incorporated |
| In Stock | 6994 |
| Datasheet | Download |
Description
| Manufacturer | Diodes Incorporated |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Output (Min/Fixed) | 5V |
| Voltage – Input (Min) | 4.5V |
| Voltage – Input (Max) | 22V |
| Topology | Buck |
| Synchronous Rectifier | No |
| Supplier Device Package | 8-SOP |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Output Type | Fixed |
| Output Configuration | Positive |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 3 (168 Hours) |
| Function | Step-Down |
| Frequency – Switching | 150kHz |
| Detailed Description | Buck Switching Regulator IC Positive Fixed 5V 1 Output 2A 8-SOIC (0.154″, 3.90mm Width) |
| Current – Output | 2A |
| Base Part Number | AP1509 |
