AO4714
| Part Number | AO4714 |
|---|---|
| Description | MOSFET N-CH 30V 20A 8-SOIC |
| Category | Discrete Semiconductor Products |
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| In Stock | 19555 |
| Datasheet | Download |
Description
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-SOIC |
| Series | SRFET |
| Rds On (Max) @ Id, Vgs | 4.7 mOhm @ 20A, 10V |
| Power Dissipation (Max) | 3W (Ta) |
| Packaging | Tape & Reel (TR) |

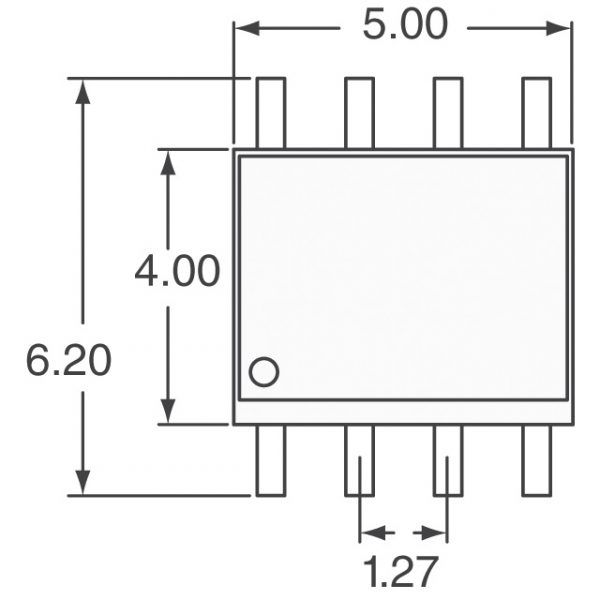

| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Other Names | 785-1052-2 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 4512pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 74nC @ 10V |
| FET Type | N-Channel |
| FET Feature | Schottky Diode (Body) |
| Drive Voltage (Max/Min Rds) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 20A (Ta) 3W (Ta) Surface Mount 8-SOIC |
| Current – Drain (Id) @ 25°C | 20A (Ta) |
