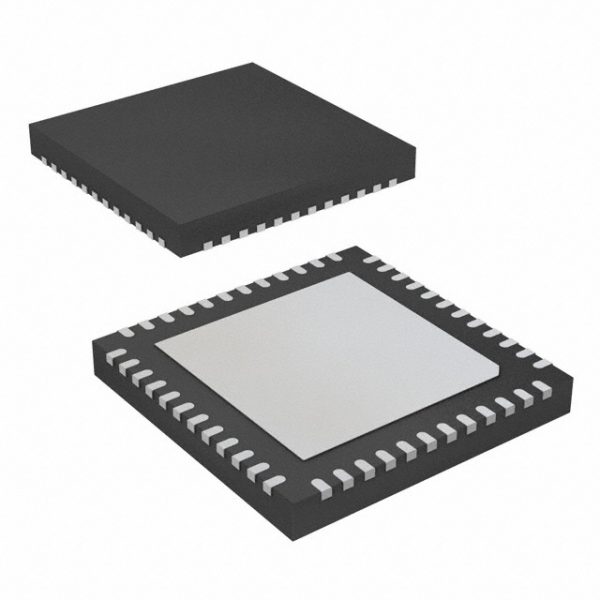

ADS6224IRGZR
| Part Number | ADS6224IRGZR |
|---|---|
| Description | IC ADC 12BIT SER/PAR 105M 48VQFN |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Luminary Micro / Texas Instruments |
| In Stock | 11708 |
| Datasheet | Download |
Description
| Manufacturer | Luminary Micro / Texas Instruments |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply, Digital | 3 V ~ 3.6 V |
| Voltage – Supply, Analog | 3 V ~ 3.6 V |
| Supplier Device Package | 48-VQFN (7×7) |
| Sampling Rate (Per Second) | 105M |
| Reference Type | External, Internal |
| Ratio – S/H:ADC | 1:01 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Other Names | ADS6224IRGZRG4 ADS6224IRGZRG4-ND |
| Operating Temperature | -40°C ~ 85°C |
| Number of Inputs | 2 |
| Number of Bits | 12 |
| Number of A/D Converters | 2 |
| Input Type | Differential |
| Features | Simultaneous Sampling |
| Detailed Description | 12 Bit Analog to Digital Converter 2 Input 2 Pipelined 48-VQFN (7×7) |
| Data Interface | LVDS – Serial |
| Configuration | S/H-ADC |
| Base Part Number | ADS6224 |
| Architecture | Pipelined |
