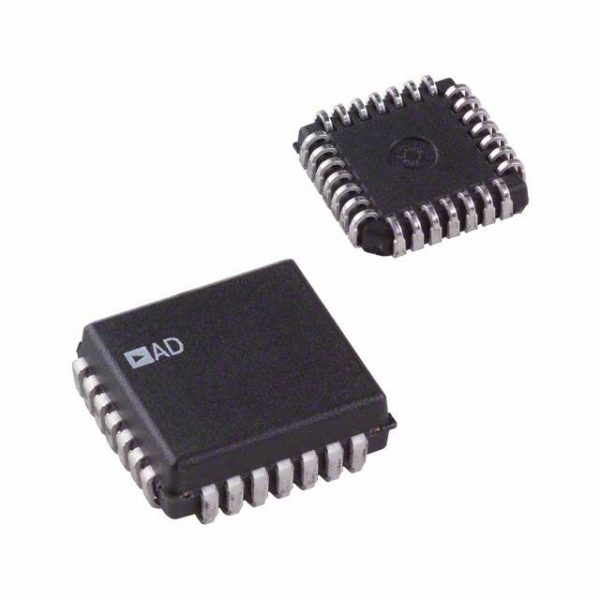

AD7547LPZ
| Part Number | AD7547LPZ |
|---|---|
| Description | IC DAC 12BIT DUAL LC2MOS 28-PLCC |
| Category | Integrated Circuits (ICs) |
| Manufacturer | ADI (Analog Devices, Inc.) |
| In Stock | 16496 |
| Datasheet | Download |
Description
| Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply, Digital | 10.8 V ~ 16.5 V |
| Voltage – Supply, Analog | 10.8 V ~ 16.5 V |
| Supplier Device Package | 28-PLCC (11.51×11.51) |
| Settling Time | 1.5µs |
| Reference Type | External |
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Current – Unbuffered |
| Operating Temperature | -40°C ~ 85°C |
| Number of D/A Converters | 2 |
| Number of Bits | 12 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Detailed Description | 12 Bit Digital to Analog Converter 2 28-PLCC (11.51×11.51) |
| Data Interface | Parallel |
| Base Part Number | AD7547 |
| Architecture | R-2R |
