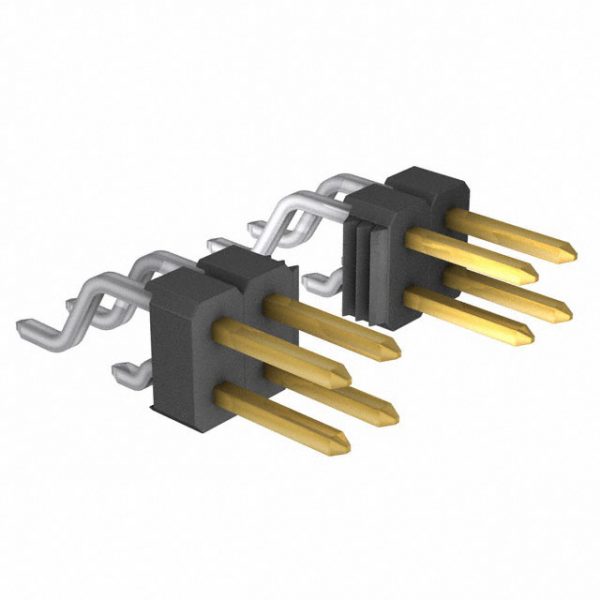

961252-5500-AR-PR
| Part Number | 961252-5500-AR-PR |
|---|---|
| Description | CONN HEADER R/A 52POS GOLD SMD |
| Category | Connectors |
| Manufacturer | 3M |
| In Stock | 6901 |
| Datasheet | Download |
Description
| Manufacturer | 3M |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Series | 961 |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Tape & Reel (TR) |
| Other Names | DE500049635 ZZ150354034 |
| Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 52 |
| Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Thermoplastic |
| Insulation Height | 0.197″ (5.00mm) |
| Insulation Color | Black |
| Features | Pick and Place |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 52 position 0.100″ (2.54mm) |
| Current Rating | 2A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length – Mating | 0.230″ (5.84mm) |
| Contact Finish Thickness – Post | 39.4µin (1.00µm) |
| Finish Thickness – Mating | Flash |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Header |
