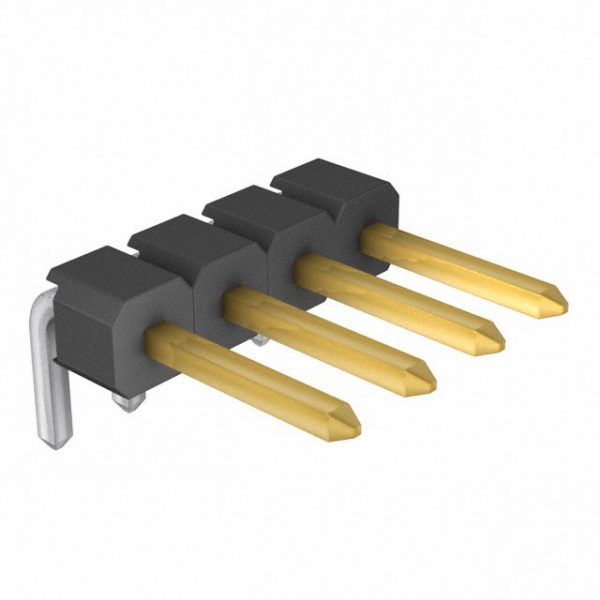

961104-5604-AR
| Part Number | 961104-5604-AR |
|---|---|
| Description | CONN HEADER R/A SGL 4POS GOLD |
| Category | Connectors |
| Manufacturer | 3M |
| In Stock | 17581 |
| Datasheet | Download |
Description
| Manufacturer | 3M |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Series | 961 |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Other Names | 3M9469 4046719181940 4671918194 9611045604AR DE500043174 |
| Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 4 |
| Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Thermoplastic |
| Insulation Height | 0.098″ (2.50mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.100″ (2.54mm) |
| Current Rating | 2A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length – Post | 0.130″ (3.30mm) |
| Contact Length – Mating | 0.240″ (6.10mm) |
| Contact Finish Thickness – Post | 39.4µin (1.00µm) |
| Finish Thickness – Mating | Flash |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Header |
