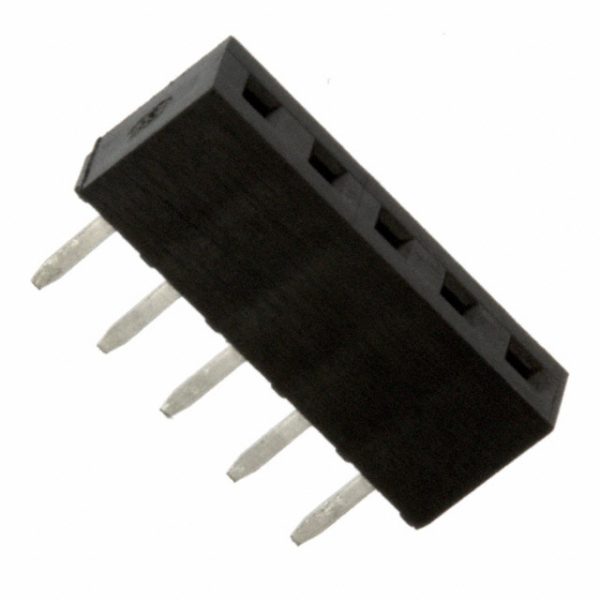

950505-6102-AR
| Part Number | 950505-6102-AR |
|---|---|
| Description | CONN SOCKET 5POS 2MM VERT T/H |
| Category | Connectors |
| Manufacturer | 3M |
| In Stock | 18956 |
| Datasheet | Download |
Description
| Manufacturer | 3M |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage Rating | 1000V |
| Termination | Solder |
| Style | Board to Board |
| Series | 950 |
| Pitch – Mating | 0.079″ (2.00mm) |
| Packaging | Tube |
| Other Names | 3M9400 5111106131 51111061312 9505056102AR DE500027425 |
| Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 5 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Thermoplastic |
| Insulation Height | 0.169″ (4.30mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | 5 Position Receptacle Connector 0.079″ (2.00mm) Through Hole Gold |
| Current Rating | 1A |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length – Post | 0.098″ (2.50mm) |
| Contact Finish Thickness – Post | 40.0µin (1.02µm) |
| Finish Thickness – Mating | Flash |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Receptacle |
