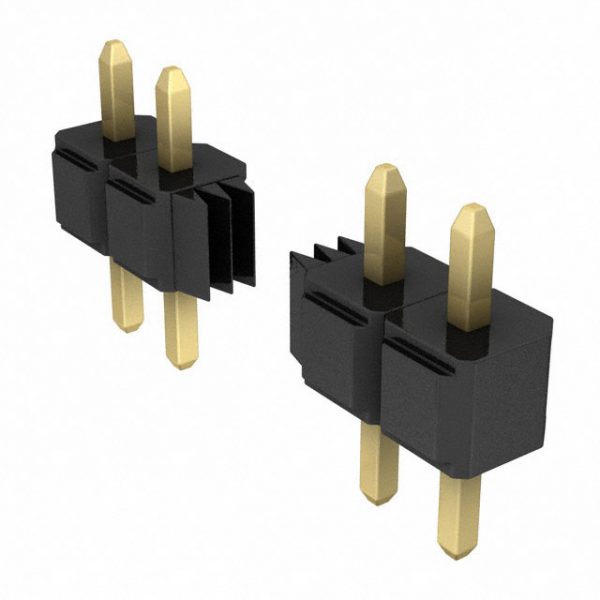

929805-01-06-EU

Part Number

Description

Manufacturer	3M
Lead / RoHS Status	Lead free / RoHS Compliant
Termination	Solder
Style	Board to Board
Shrouding	Unshrouded
Series	929
Pitch – Mating	0.100″ (2.54mm)
Packaging	Bulk
Overall Contact Length	0.318″ (8.08mm)
Other Names	00076308026905 07630802690 7630802690 76308026905 80001306192
Operating Temperature	-40°C ~ 105°C
Number of Rows	1
Number of Positions Loaded	All
Number of Positions	6
Mounting Type	Through Hole
Moisture Sensitivity Level	1 (Unlimited)
Material Flammability Rating	UL94 V-0
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Height	0.115″ (2.92mm)
Insulation Color	Black
Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 6 position 0.100″ (2.54mm)
Current Rating	2.5A
Contact Type	Male Pin
Contact Shape	Square
Contact Material	Copper Alloy
Contact Length – Post	0.110″ (2.79mm)
Contact Length – Mating	0.093″ (2.36mm)
Contact Finish Thickness – Post	10.0µin (0.25µm)
Finish Thickness – Mating	10.0µin (0.25µm)
Contact Finish – Post	Gold
Contact Finish – Mating	Gold
Connector Type	Header, Breakaway
