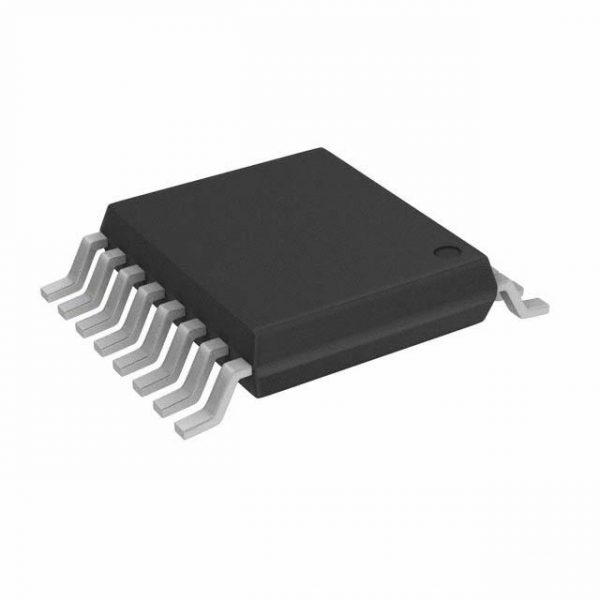

74VHC4316MTC
| Part Number | 74VHC4316MTC |
|---|---|
| Description | IC SWITCH QUAD 1X1 16TSSOP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 5460 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply, Single (V+) | 2 V ~ 6 V |
| Voltage – Supply, Dual (V±) | ±1 V ~ 6 V |
| Switch Time (Ton, Toff) (Max) | 30ns, 44ns |
| Switch Circuit | SPST – NO |
| Supplier Device Package | 16-TSSOP |
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 70 Ohm |
| Number of Circuits | 4 |
| Multiplexer/Demultiplexer | 1:01 |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Detailed Description | 4 Circuit IC Switch 1:1 70 Ohm 16-TSSOP |
| Current – Leakage (IS(off)) (Max) | 50nA |
| Crosstalk | -50dB @ 1MHz |
| Channel-to-Channel Matching | 5 Ohm |
| Base Part Number | 74VHC4316 |
| -3db Bandwidth | 100MHz |
