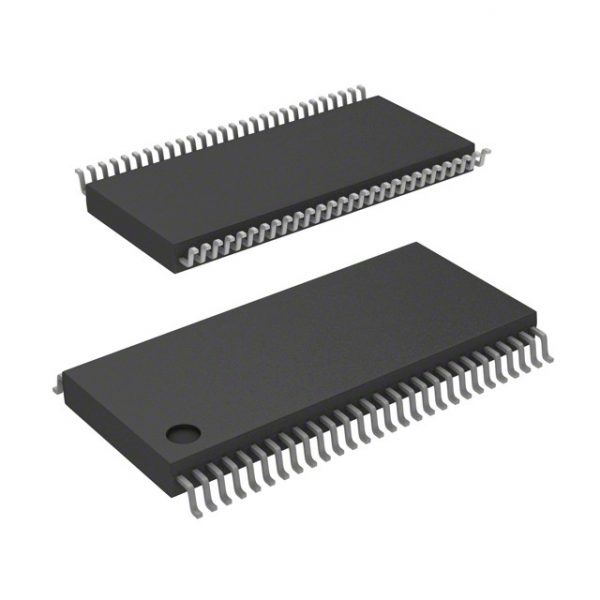

74FCT162823ATPACT
| Part Number | 74FCT162823ATPACT |
|---|---|
| Description | IC FF D-TYPE DUAL 9BIT 56TSSOP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Luminary Micro / Texas Instruments |
| In Stock | 17612 |
| Datasheet | Download |
Description
| Manufacturer | Luminary Micro / Texas Instruments |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 4.5 V ~ 5.5 V |
| Type | D-Type |
| Trigger Type | Positive Edge |
| Series | 74FCT |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-TFSOP (0.240″, 6.10mm Width) |
| Output Type | Tri-State, Non-Inverted |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Elements | 2 |
| Number of Bits per Element | 9 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Max Propagation Delay @ V CL | 10ns @ 5V, 50pF |
| Input Capacitance | 4.5pF |
| Function | Master Reset |
| Current – Quiescent (Iq) | 500µA |
| Current – Output High, Low | 24mA, 24mA |
| Base Part Number | 74FCT162823 |
