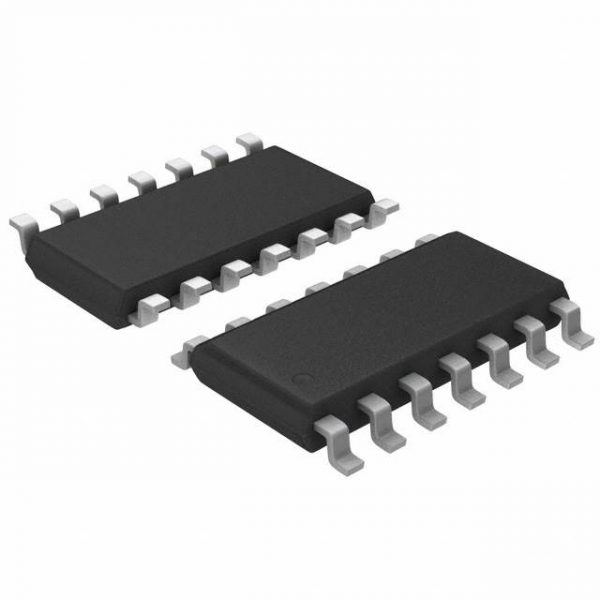

74F20SCX
| Part Number | 74F20SCX |
|---|---|
| Description | IC GATE NAND 2CH 4-INP 14SOIC |
| Category | Integrated Circuits (ICs) |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 18285 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 4.5 V ~ 5.5 V |
| Supplier Device Package | 14-SOIC |
| Series | 74F |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154″, 3.90mm Width) |
| Operating Temperature | 0°C ~ 70°C |
| Number of Inputs | 4 |
| Number of Circuits | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Max Propagation Delay @ V CL | 5ns @ 5V, 50pF |
| Logic Type | NAND Gate |
| Logic Level – Low | 0.8V |
| Logic Level – High | 2V |
| Detailed Description | NAND Gate IC 2 Channel 14-SOIC |
| Current – Output High, Low | 1mA, 20mA |
| Base Part Number | 74F20 |
