4-103329-0-28
| Part Number | 4-103329-0-28 |
|---|---|
| Description | CONN HEADR BRKWAY .100 28POS R/A |
| Category | Connectors |
| Manufacturer | Agastat Relays / TE Connectivity |
| In Stock | 10540 |
| Datasheet | Download |
Description
| Manufacturer | Agastat Relays / TE Connectivity |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Series | AMPMODU Mod II |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Other Names | 2-103329-8 A26517-28 |
| Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 28 |
| Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Thermoplastic |
| Insulation Height | 0.138″ (3.50mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 28 position 0.100″ (2.54mm) |
| Current Rating | 3A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Copper Alloy |

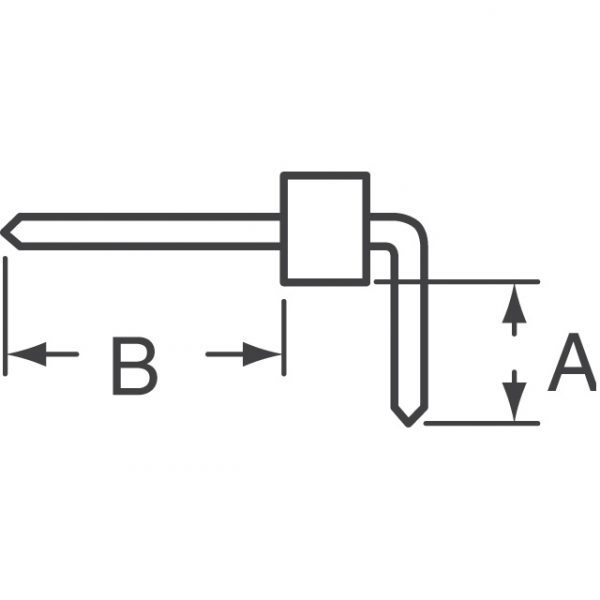

| Contact Length – Post | 0.120″ (3.05mm) |
| Contact Length – Mating | 0.230″ (5.84mm) |
| Contact Finish Thickness – Post | 100.0µin (2.54µm) |
| Finish Thickness – Mating | 100.0µin (2.54µm) |
| Contact Finish – Post | Tin-Lead |
| Contact Finish – Mating | Tin-Lead |
| Connector Type | Header, Breakaway |
