2SD2528
| Part Number | 2SD2528 |
|---|---|
| Description | TRANS NPN 60V 5A TO-220D |
| Category | Discrete Semiconductor Products |
| Manufacturer | Panasonic |
| In Stock | 15134 |
| Datasheet | Download |
Description
| Manufacturer | Panasonic |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Collector Emitter | 60V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 100mA, 4A |
| Transistor Type | NPN |

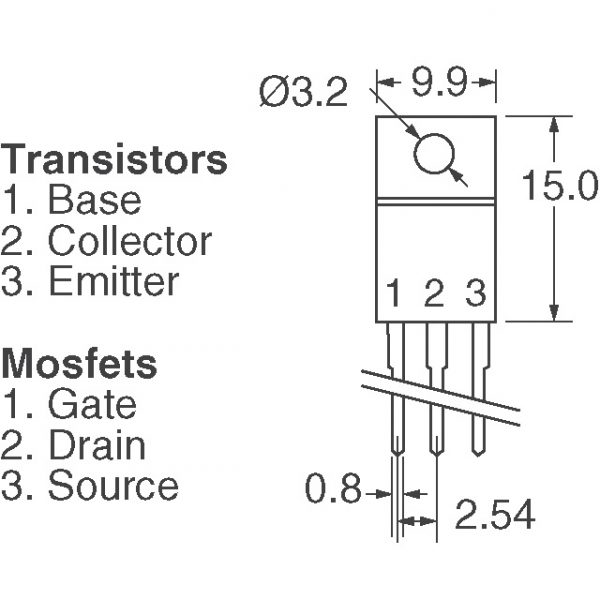

| Supplier Device Package | TO-220D-A1 |
| Power – Max | 2W |
| Packaging | Bulk |
| Package / Case | TO-220-3 Full Pack |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Frequency – Transition | 30MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 60V 5A 30MHz 2W Through Hole TO-220D-A1 |
| DC Current Gain (hFE) (Min) | 500 @ 1A, 4V |
| Current – Collector Cutoff | 100µA (ICBO) |
| Current – Collector (Ic) (Max) | 5A |
