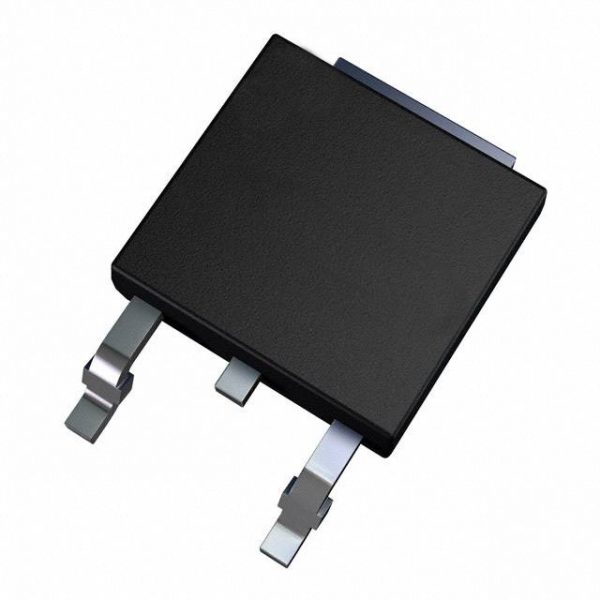

2SD1815S-TL-H

Part Number	2SD1815S-TL-H
Description	TRANS NPN 100V 3A TP-FA
Category	Discrete Semiconductor Products
Manufacturer	AMI Semiconductor / ON Semiconductor
In Stock	14531
Datasheet	Download

Category: Discrete Semiconductor Products

Description

Description

Manufacturer	AMI Semiconductor / ON Semiconductor
Lead / RoHS Status	Lead free / RoHS Compliant
Vce Saturation (Max) @ Ib, Ic	400mV @ 150mA, 1.5A
Transistor Type	NPN
Supplier Device Package	2-TP-FA
Power – Max	1W
Packaging	Tape & Reel (TR)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Frequency – Transition	180MHz
Detailed Description	Bipolar (BJT) Transistor NPN 100V 3A 180MHz 1W Surface Mount 2-TP-FA
Current – Collector Cutoff (Max)	1µA (ICBO)
Current – Collector (Ic) (Max)	3A
Base Part Number	2SD1815
