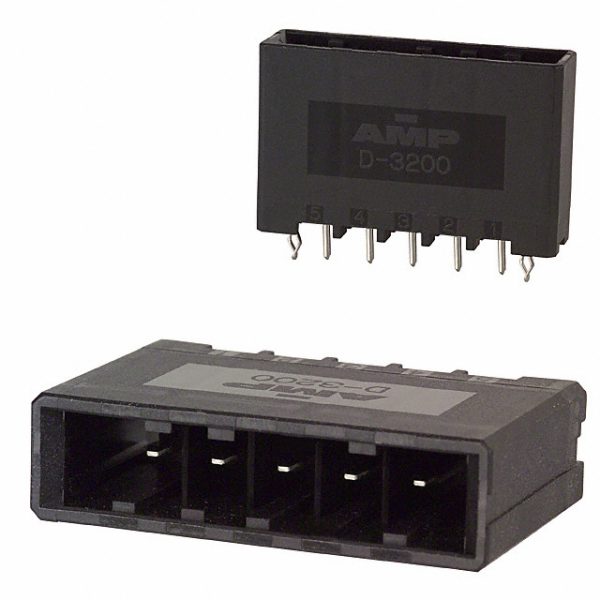

2-316132-5
| Part Number | 2-316132-5 |
|---|---|
| Description | CONN HDR 5POS VERT KEY-Y TIN |
| Category | Connectors |
| Manufacturer | Agastat Relays / TE Connectivity |
| In Stock | 5317 |
| Datasheet | Download |
Description
| Manufacturer | Agastat Relays / TE Connectivity |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage Rating | 600V |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Shrouded – 4 Wall |
| Series | Dynamic D-3200 |
| Pitch – Mating | 0.200″ (5.08mm) |
| Packaging | Bulk |
| Other Names | A29633 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 5 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 31.00mm ~ 32.50mm |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.850″ (21.59mm) |
| Insulation Color | Black |
| Features | Board Lock |
| Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 5 position 0.200″ (5.08mm) |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Contact Material | Copper Alloy |
| Contact Length – Post | 0.150″ (3.81mm) |
| Finish Thickness – Mating | 78.7µin (2.00µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Tin |
| Connector Type | Header |
| Applications | General Purpose, Industrial |
