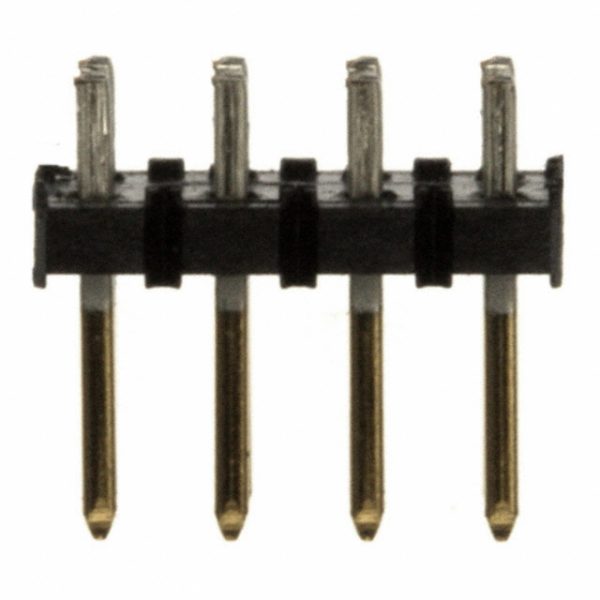

151208-8421-RB
| Part Number | 151208-8421-RB |
|---|---|
| Description | CONN 8POS 2MM HEADER DL STR T/H |
| Category | Connectors |
| Manufacturer | 3M |
| In Stock | 16359 |
| Datasheet | Download |
Description
| Manufacturer | 3M |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Series | 1512 |
| Row Spacing – Mating | 0.079″ (2.00mm) |
| Pitch – Mating | 0.079″ (2.00mm) |
| Packaging | Bulk |
| Overall Contact Length | 0.307″ (7.80mm) |
| Other Names | 05111166041 1512088421RB 3M5353 80000903163 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 8 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.060″ (1.52mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 8 position 0.079″ (2.00mm) |
| Current Rating | 1A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length – Post | 0.118″ (3.00mm) |
| Contact Length – Mating | 0.152″ (3.86mm) |
| Contact Finish Thickness – Post | 200.0µin (5.08µm) |
| Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Header |
