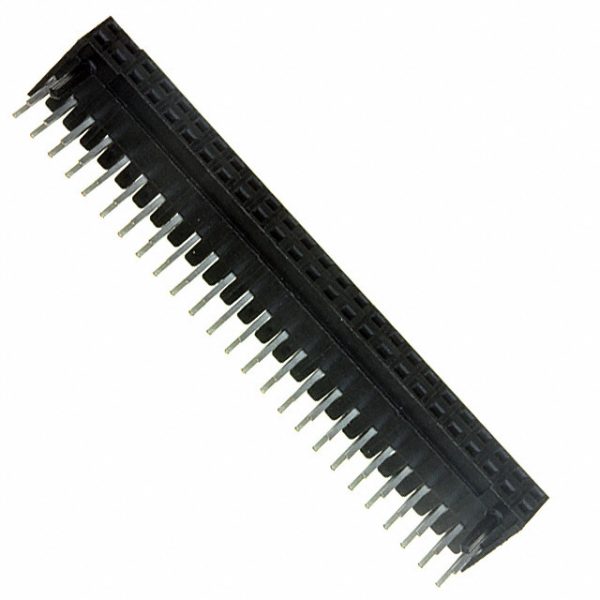

150250-5222-RB
| Part Number | 150250-5222-RB |
|---|---|
| Description | CONN 50POS 2MM SOCKET R/A PC MT |
| Category | Connectors |
| Manufacturer | 3M |
| In Stock | 13699 |
| Datasheet | Download |
Description
| Manufacturer | 3M |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage Rating | 500VDC |
| Termination | Solder |
| Style | Board to Board or Cable |
| Series | 1502 |
| Row Spacing – Mating | 0.079″ (2.00mm) |
| Pitch – Mating | 0.079″ (2.00mm) |
| Packaging | Tray |
| Other Names | 05111165697 1502505222RB 3M5346 5111165697 51111656976 80000900938 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 50 |
| Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Thermoplastic |
| Insulation Height | 0.192″ (4.88mm) |
| Insulation Color | Black |
| Features | Board Guide |
| Fastening Type | Push-Pull |
| Detailed Description | 50 Position Receptacle Connector 0.079″ (2.00mm) Through Hole, Right Angle Gold |
| Current Rating | 1A |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length – Post | 0.125″ (3.18mm) |
| Contact Finish Thickness – Post | 200.0µin (5.08µm) |
| Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Receptacle |
