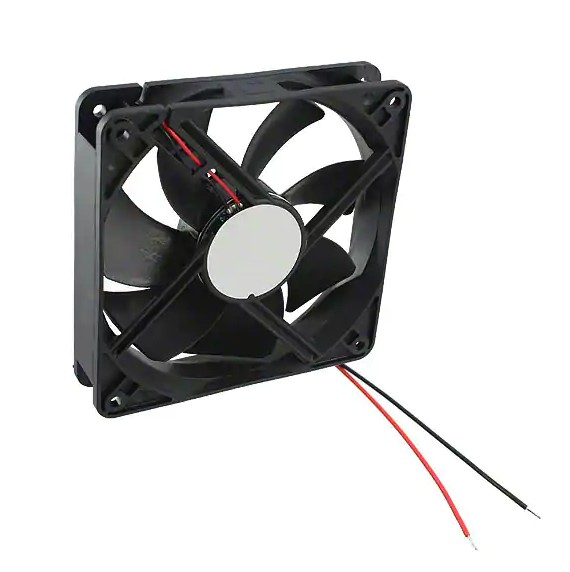

109E5712K5D01

109E5712K5D01

Part Number

109E5712K5D01

Description

Manufacturer	Sanyo Denki
Width	51.00mm
Weight	1.7 lb (760.0g)
Voltage Range	10.2 ~ 13.8VDC
Voltage – Rated	12VDC
Termination	3 Wire Leads
Static Pressure	0.976 in H2O (243.0 Pa)
Size / Dimension	Rectangular/Rounded – 172mm L x 150mm H
Series	San Ace 172
RPM	4100 RPM
Power (Watts)	34.80W
Operating Temperature	-4 ~ 140°F (-20 ~ 60°C)
Noise	60.0 dB(A)
Material – Frame	Aluminum
Material – Blade	Plastic
Lifetime @ Temp.	40000 Hrs @ 60°C
Features	Locked Rotor Sensor
Fan Type	Tubeaxial
Current Rating	2.90A
Bearing Type	Ball
Approvals	CSA, TUV, UL
Air Flow	300.0 CFM (8.40m³/min)
